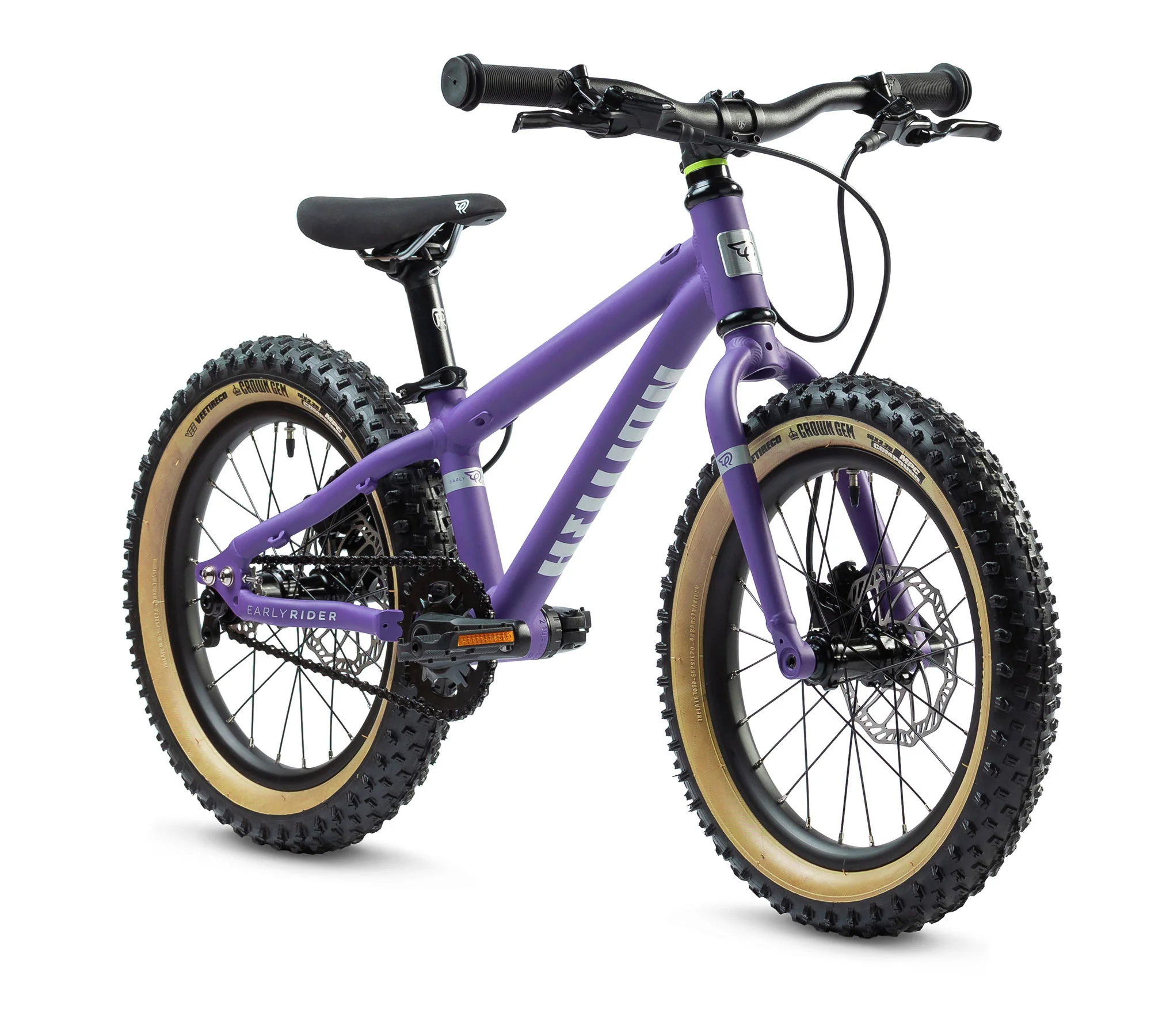

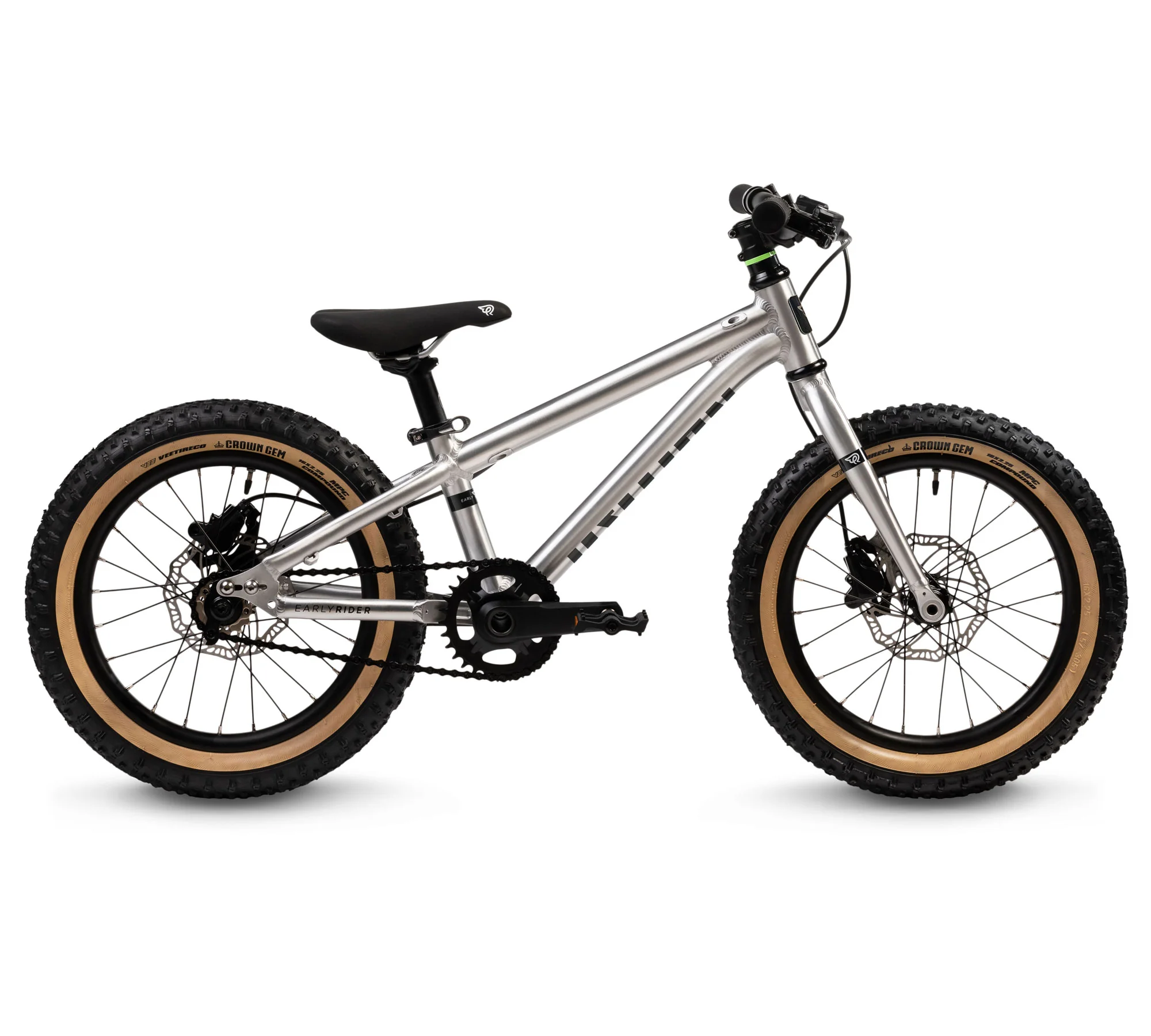

Hellion 16 (MY24/25)

Well, hello there.

Say hello to a bike that is extreme in every way. The best performance, capability and configurability in a 16" yet, it is a bike created for early riders to push the limits of what's possible, and then do it again.

It's built around the most impressive robust and lightweight frame set. Triple butted tubing and a CNC'd chain stay yoke, means there are no weak points. Precise wheel and disc alignment every time thanks to 12mm thru axles front and rear. Complete with internal cable routing to make sure everything is out of the way.

For those beginning to hit gaps, protection against casing with double walled tubeless ready rims on CNC'd hubs and straight pull spokes. Helped by a long, low and slack geometry for confidence inspiring stability and short stay, quick handling for when it gets technical.

Assured, efficient power transfer through a narrow q factor crankset with a direct mount narrow wide chainring and finished off with custom Rticthey controls and hydraulic disc brakes with some of the lightest actuation we've tested.

This is the best start to hitting the bike parks, but if you do want more, our four bearing cassette hub, 12 x 142mm drop outs, mech hanger and additional routing, mean gears are an easy option  - and with our CNC'd yoke, so are 2.6" tyres for those really riding the rough.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with both wheels attached. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Then simply add the pedals. You will be emailed an unboxing video with full instructions. Please retain your manual.

[Left column]

INSIDE LEG

43.5CM

FRAME

TRIPLE BUTTED AL6061 INTERNAL CABLING, FORGED D/OUTS

FORK

RIGID DISC AL6061, 12MM THRU AXLE, FORGED D/OUTS

STEERER TUBE

AL6061

CRANKS

SAMOX 110MM DIRECT MOUNT, NQF

PEDALS

ER RESIN PLATFORM, SEALED CARTRIDGE BEARING

BOTTOM BRACKET

SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE BEARING

RIMS

16 x 24H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE

REAR HUB

STRAIGHT PULL DISC, 12x142 THRU AXLE,  24H

FRONT HUB

STRAIGHT PULL DISC, 12x100MM THRU AXLE, 24H

AXLES

12MM AL7075 THRU AXLES, F + R

CHAIN

KMC X10

CHAINRING

CNC'D STEEL 30T NARROW WIDE



CLICK HERE TO VIEW THE USER MANUAL

[Right column]

WEIGHT

6.8KGS W/O PEDALS

CASSETTE

ER SINGLE SPEED KIT, 16T

BRAKES

PROMAX DSK926 HYDRAULIC JR, 140MM ROTORS

LEVERS

PROMAX DSK926 JR

FRONT TYRE

VEE CROWN GEM 16x2.25", 27TPI WB, SKINWALL

REAR TYRE

VEE CROWN GEM 16x2.25", 27TPI WB, SKINWALL

HEADSET

1 1/8” CARTRIDGE BEARING, CONVENTIONAL

STEM

RITCHEY OS FORGED AL6061, 35MM REACH

BARS

480MM RITCHEY OS AL6061, 18MM RISE

GRIPS

ER LOCK ON KRATON 92MM

SEAT POST

RITCHEY 27.2MM x 185MM

SADDLE

ER WING, RAILED

SEAT CLAMP

ER BOLT, 31.8MM



[Table]

STANDOVER HEIGHT	43.5CM
FRAME	TRIPLE BUTTED AL6061 INTERNAL CABLING, FORGED D/OUTS
FORK	RIGID DISC AL6061, 12MM THRU AXLE, FORGED D/OUTS
STEERER	TUBE AL6061
CRANKS	SAMOX 110MM DIRECT MOUNT, NQF
PEDALS	ER RESIN PLATFORM, SEALED CARTRIDGE BEARING
BOTTOM BRACKET	SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE BEARING
RIMS	16 x 24H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE
REAR HUB	STRAIGHT PULL DISC, 12x142 THRU AXLE, 24H
FRONT HUB	STRAIGHT PULL DISC, 12x100MM THRU AXLE, 24H
AXLES	12MM AL7075 THRU AXLES, F + R
CHAIN	KMC X10
CHAINRING	CNC'D STEEL 30T NARROW WIDE
WEIGHT	6.8KGS W/O PEDALS
REAR CASSETTE	ER SINGLE SPEED KIT
BRAKES	PROMAX DSK926 HYDRAULIC JR, 140MM ROTORS
LEVERS	PROMAX DSK926 JR
FRONT TYRE	VEE CROWN GEM 16x2.25", 27TPI WB, SKINWALL
REAR TYRE	VEE CROWN GEM 16x2.25", 27TPI WB, SKINWALL
HEADSET	1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM	RITCHEY OS FORGED AL6061, 35MM REACH
BARS	480MM RITCHEY OS AL6061, 18MM RISE
GRIPS	ER SOFT TOUCH MUSHROOM 100MM
SEAT POST	RITCHEY 27.2MM x 185MM
SADDLE	ER WINGED, RAILED
SEAT CLAMP	ER BOLT, 31.8MM

SPEC NOTICE

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice

[Table spec]

A	Wheelbase	720mm
B	Head Angle	68°
C	Seat Tube Length	210mm
D	Chainstay Length	280mm
E	Seat Tube Angle	71°
F	Standover Height	420mm
G	Top Tube Length	399mm
H	Head Tube Length	90mm
I	Stack	346mm
J	Reach	280mm
K	Fork Length	266mm
